Grinding Stones

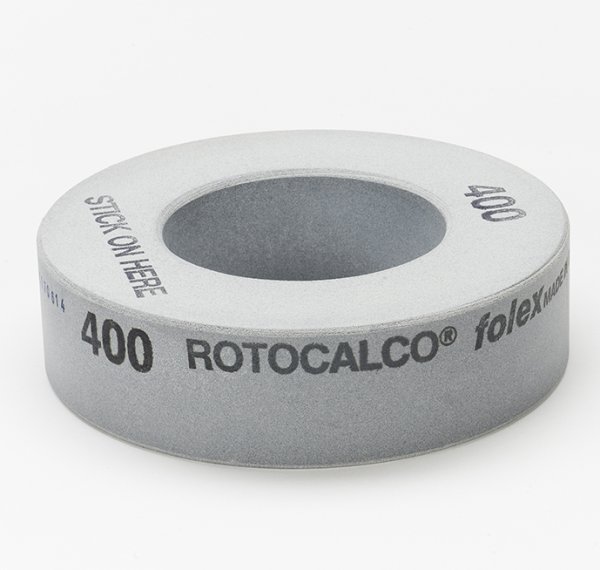

ROTOCALCO® Grinding stones for copper surfaces

Grinding stones designed for ink-attracting copper surfaces have to perform an extremely responsible task. Conventional ceramically bound grinding stones or silicon carbide grinding stones are only fit for this purpose to a limited extend. They are rather suitable for coarse grinding work but do not meet up-to-date demands. By comparison, the proven embedding of our abrasive grains in tough foamed synthetic material makes for the durability of the Rotocalco grinding and polishing stones in addition to an outstanding cutting performance when achieving fine roughness values. Our particular synthetic material has been developped especially for the stones mass in order to assist in the defined continuous removal of worn out abrasive particles. This self-cleaning effect allows the long-lasting use of a stone surface providing ideal grinding properties. Spring-mounted abrasive wheels guarantee an even grinding pattern without chatter marks, score marks or other irregularities. Uncontrolled material abrasion and undesired clogging on the abrading stone surface is avoided, and no post processing is necessary.

Cut sheets

Art. Number	Grit size	Outer Hole Diameter in mm	Height approx. (mm)	Centre Hole Diameter in mm	pcs per package
12910.080.08001	800	190	50	50	14
12910.100.01001	1000	190	50	50	14
12910.150.05001	1500	190	50	50	14
12910.200.02001	2000	190	50	50	14
12910.250.06201	2500	190	50	50	14
12910.300.03001	3000	190	50	50	14
12910.080.08003	800	190	50	100	14
12910.100.01003	1000	190	50	100	14
12910.150.05003	1500	190	50	100	14
12910.200.02003	2000	190	50	100	14
12910.250.06203	2500	190	50	100	14
12910.300.03003	3000	190	50	100	14
12910.080.08002	800	190	70	50	10
12910.100.01002	1000	190	70	50	10
12910.150.05002	1500	190	70	50	10
12910.200.02002	2000	190	70	50	10
12910.300.03002	3000	190	70	50	10
