Grinding Stones

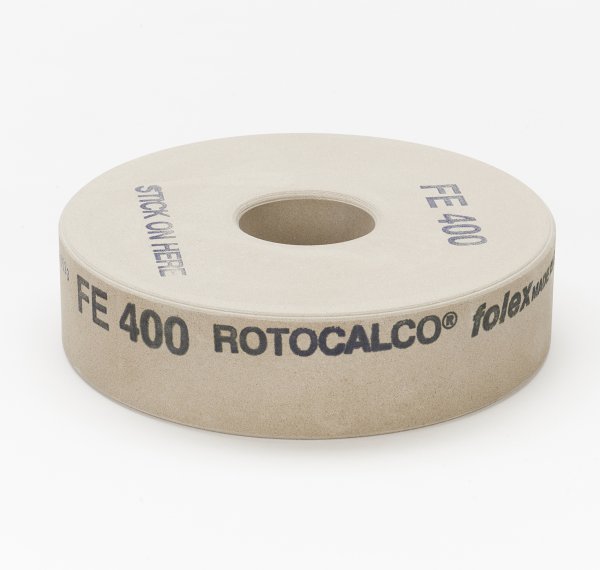

ROTOCALCO® Grinding stones for steel surfaces

Steel material needs to be removed evenly at the cylinder base in order to create a suitable substrate for later copper plating. Rotocalco steel grinding stones are designed to aggressively remove stock without generating undesirable grinding patterns. This product is available in a 280 grit for more aggressive grinding, and a 400 grit for more polished finishing.

Cut sheets

Art. Number	Grit size	Outer Hole Diameter in mm	Height approx. (mm)	Centre Hole Diameter in mm	pcs per package
12920.028.28001	280	190	50	50	14
12920.040.40001	400	190	50	50	14

Technical data

Specifications

Grit size	280
Outer Hole Diameter in mm	190
Height approx. (mm)	50
Centre Hole Diameter in mm	50
pcs per package	14

Compatibility

Grindstones for chrome surfaces
Grinding stones for steel surfaces

Handling

Outside diameter of grinding stone +/- 5 mm

Downloads (PDF)

Catalogues

GRAVURE PRINTING - Folex Grinding Stones (EN) (PDF)
GRAVURE PRINTING - Folex Grinding Stones (DE) (PDF)

Handling Instructions

Handhabungshinweise Schleifsteine (EN) (PDF)
Instruction Grinding Stones (DE) (PDF)
