Premium Line

Folacoat Pure

The new Folacoat® Pure from the PureLine portfolio
More sustainability from our coating plant

The Folex PureLine range presents products that are not only aimed at reducing direct emissions they also represent a decisive step towards conservation of resources. The development of a sustainable coating plate impressively demonstrates Folex's commitment to ecological innovation. The brand new Folacoat® Pure coating plate offers a sustainable and environmentally conscious alternative: it has been developed using a polymer with 28.6% renewable raw material content and has a special base polyester carrier with 50% recycled content.

Please click here  to find useful handling recommendation and interesting product introduction by video.

Cut sheets

Art. NumberNominal thickness (inch)Nominal thickness (mm)
12544.115.99900.0451,15PDF

Rolls

Art. NumberWidth (mm)Length (m)Nominal thickness (inch)Nominal thickness (mm)
12544.115.199001280k. A..0451,15PDF

Technical data

Characteristic

  • Recommended for direct coating
  • Suitable for aqueous coating
  • Suitable for UV coating
  • Slipping film / protection film
  • manual cutting possible
  • Ideal for CAD cutting systems
  • Polyester-basis/ -carrier
  • Cutting protection (double layer)
  • Cut visualization

Specifications

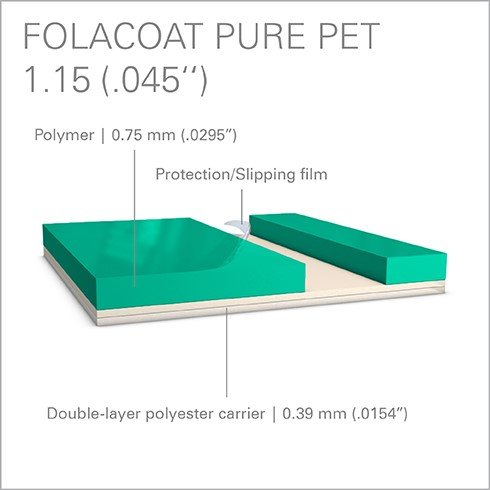

Thickness of polymer layer0.75 mm
Thickness of carrier 0.39 mm
Tolerance of thickness ± 0.05 mm
Type of coating transfer direct coating
Plate hardness88 Shore A
Nominal thickness (inch).045
Nominal thickness (mm)1,15
Surface treatmentSlippingfilm
Hardness of polymer (DIN 53505)83 Shore A
Base MaterialPolyester/Polyester

Compatibility

  • Suitable for aqueous and UV coatings

Handling

NOMINAL THICKNESS 1.15 mm: Recommended cutting depth: about 0.85 mm (.0335”). If you like to remove the slipping film before cutting, reduce depth by 0.05 mm (.002”). The polyester film in the middle helps to avoid deformations of the carrier-film below. A thin white line on the back indicates that the cut went correctly through the polymer and slightly into the polyester ensuring the correct cutting depth has been reached. This now means the correct stripping performance will be obtained without partial lifting of the remaining polymer areas.
