Performance Line

Folacoat Speed

FOR MAXIMUM SPEED AND STABLE PROCESSES

When production speed becomes a decisive competitive advantage, you need solutions that can keep up. Folacoat Speed has been specifically developed for high-speed applications and delivers consistent coating quality – even at the highest press speeds.

Thanks to targeted polymer optimization, the coating plate ensures smooth running without roller bounce, prevents ink build-up during the process, and provides consistently excellent coating transfer. The result: maximum process reliability, reproducible quality, and significantly increased production efficiency.

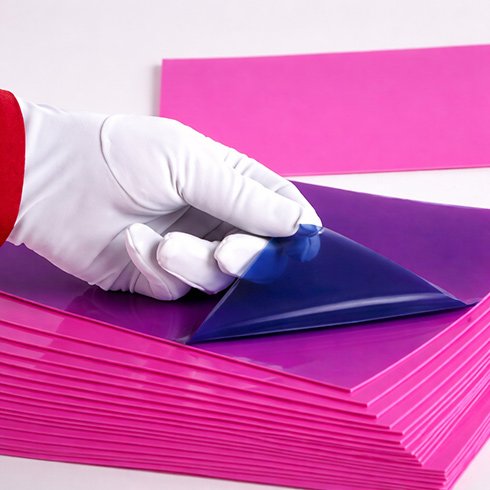

An additional practical benefit: the new blue protective film enhances contrast during plotting, ensuring that cut areas are reliably identified and reliably stripped – for even greater safety and efficiency in further processing.

Maximize your production performance with stable processes, maximum speed, and measurable efficiency gains.

Folacoat Speed is now also available in roll-length 20m and 40m.

Download Sales Folder Folacoat Speed as PDF

Please click here to find useful handling recommendation and interesting product introduction by video.

Cut sheets

Art. Number	Nominal thickness (inch)	Nominal thickness (mm)
12563.115.99900	0.45	1.15

Rolls

Art. Number	Width (mm)	Length (m)	Nominal thickness (inch)	Nominal thickness (mm)
12563.115.31280	1280	20	0.45	1.15
12563.115.21280	1280	40	0.45	1.15

Technical data

Characteristic

Recommended for direct coating
Slipping film / protection film
manual cutting possible
Ideal for CAD cutting systems
Polyester-basis/ -carrier
Cutting protection (double layer)
Cut visualization

Specifications

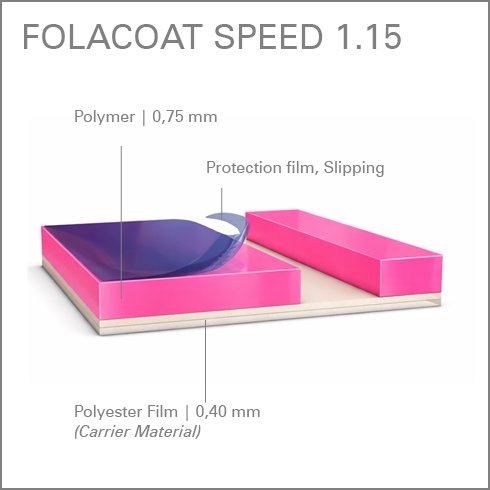

Thickness of polymer layer	0.75 mm (.0295'')
Thickness of carrier	0.39 mm (.0154'')
Tolerance of thickness	± 0.05 mm (.002'')
Type of coating transfer	direct coating
Plate hardness	79 Shore A
Nominal thickness (inch)	.045
Nominal thickness (mm)	1.15
Surface treatment	Slipping film / Protection film
Hardness of polymer (DIN 53505)	65 Shore A (preliminary measurement)
Base Material	Polyester/Polyester

Compatibility

Suitable for aqueous and UV coatings

Handling

NOMINAL THICKNESS 1.15 mm: Recommended cutting depth: about 0.85 mm (.0335”). If you like to remove the slipping film before cutting, reduce depth by 0.05 mm (.002”). The polyester film in the middle helps to avoid deformations of the carrier-film below. A thin white line on the back indicates that the cut went correctly through the polymer and slightly into the polyester ensuring the correct cutting depth has been reached. This now means the correct stripping performance will be obtained without partial lifting of the remaining polymer areas.
