Diazo Amber Clear

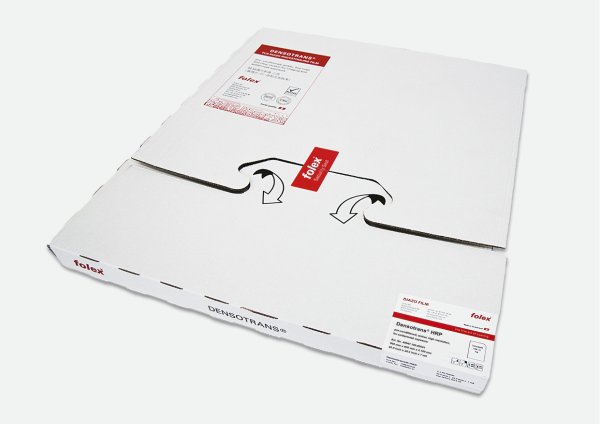

Densotrans HRP
PCB Diazo Phototooling Polyester Film, single-side, clear, amber
Cut sheets
Technical data
Specifications
| Nominal thickness (mil) | 7.2 |
| Nominal thickness (mm) | 0.180 |
| Width (inch) | 20 |
| Width (mm) | 508 |
| Format | 20"x24" |
| Length (inch) | 23.98 |
| Length (mm) | 609 |
| Base Material | Polyester film |
| Packing quantity | 100 |
Handling
- Please follow the special handling instructions (instruction sheet).
- The films are sensitive to UV light. Processing in subdued room-light (ideally yellow light) is possible. However, it is essential to avoid direct sunlight and prolonged storage in an illuminated room. Sunlight destroys the light sensitive diazo coating in a short time.
- Avoid fingerprints
Storage
- Unprocessed films: Cool (15-20°C) and dry (less than 60% humidity) - in a sealed package and protected from light and ammonia.
- Processed films: normal room condition in filing cabinets.
