Printing Unit

Folabase U

UNDERPACKING FOIL, NON ADHESIVE

Folabase U offers reliable support for adaptation to cylinder circumferences and print lengths in offset printing presses and ensures optimum dot transfer.

Folabase U can be applied very easy beneath printing formes and rubber blankets. Furthermore the material can be used in coating units in combination with our compressible Folacomp underpacking to achieve ideal rolling conditions.

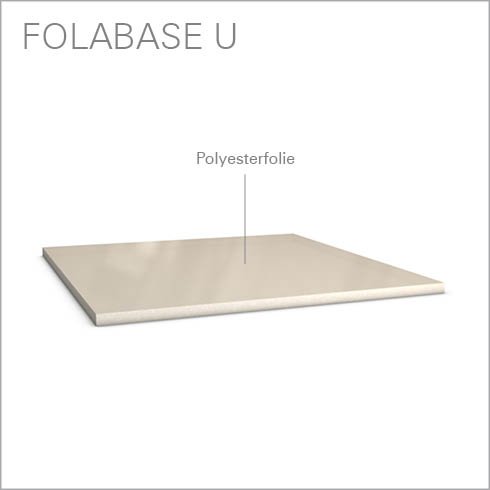

Folabase U consists of a biaxial stretched polyester layer which offers high dimension stability. The thickness tolerance is low. The material composition has an extremely high swell resistance to dampening solutions and cleaning agents and shows fewer tendencies to breaks.

For product introduction by video please click here.

Cut sheets

Art. NumberNominal thickness (mm)Nominal thickness (inch)
12000.040.999000.04.0157PDF
12000.080.999000.08.0031PDF
12000.100.999000.10.0039PDF
12000.120.999000.12.0047PDF
12000.140.999000.14.0055PDF
12000.160.999000.16.0063PDF
12000.180.999000.18.0071PDF
12000.200.999000.20.0079PDF
12000.230.999000.23.0090PDF
12000.250.999000.25.0098PDF
12000.280.999000.28.011PDF
12000.300.999000.30.0118PDF
12000.350.999000.35.014PDF

Rolls

Art. NumberWidth (mm)Length (m)Nominal thickness (inch)Nominal thickness (mm)
12000.040.11300130050.00160.04PDF
12000.080.11300130050.00310.08PDF
12000.100.11300130050.00390.10PDF
12000.120.11300130050.00470.12PDF
12000.140.11300130050.00550.14PDF
12000.160.11300130050.00630.16PDF
12000.180.11300130050.00710.18PDF
12000.200.11300130050.00790.20PDF
12000.230.11300130050.00900.23PDF
12000.250.11300130050.00980.25PDF
12000.280.11300130050.0110.28PDF
12000.300.11300130050.01180.30PDF
12000.350.11300130050.0140.35PDF

Technical data

Characteristic

  • Paper jam-resistant Crease-resistant / self-healing
  • Polyester-basis/ -carrier

Compatibility

  • For Blanket Cylinder
  • For a hard substrate packing.
