Grinding Stones

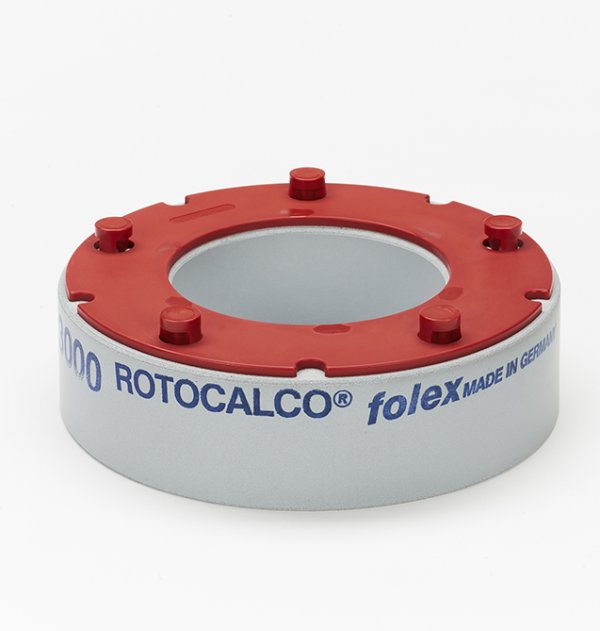

ROTOCALCO® Grinding Stone with Quick-Lock-Adapter disc

In the modern Grinding Industry, which is primarily characterized by the demand for economy and productivity, innovative connection solutions play an important role. Quick retrofitting and setting up the grinding machines for optimum grinding conditions must therefore be accorded special importance.
Common Quick-Lock systems offer a good opportunity to significantly reduce make-ready times. The adapter discs were finally bonded to the grinding stone with a special hybrid adhesive. The adhesive used here achieves optimum adhesion to the porous grinding stone surface and the adapter disc. The bond provides a good temperature and moisture resistance.
A trouble free use of our grinding stone with Quick-Lock adapter can be assured.
Due to the lack of pin anchors, the height of our Rotocalco Grinding stones can be optimally utilized.

Rotocalco Grinding stones with Quick-Lock adapter disc for processing copper cylinders are available with a 100 mm inner hole. On request, grinding stones with a 50 mm inner hole can also be equipped with the Quick-Lock adapter disc. We will gladly submit you our detailed offer.

After successful use, the Grinding stone can be easily removed from the bayonet carrier plate. Optionally we offer a special tool for detaching the grinding stones.

PRODUCT ADVANTAGES:

  • Quick installation of the Grinding stone
  • Weight savings through solid plastic
  • Corrosion-free
  • Optimum use of the Grinding stone height
  • Easy clamping and unclamping with special tool

Cut sheets

Art. NumberGrit sizeOuter Hole Diameter in mmHeight approx. (mm)Centre Hole Diameter in mmpcs per package
12910.012.55007120190505012PDF
12910.018.44007180190505012PDF
12910.028.00007280190505012PDF
12910.040.04007400190505012PDF
12910.060.06007600190505012PDF
12910.080.08007800190505012PDF
12910.150.050071500190505012PDF
12910.200.020072000190505012PDF
12910.250.062072500190505012PDF
12910.300.030073000190505012PDF
12910.500.500075000190505012PDF
12910.012.550081201905010012PDF
12910.015.330081501905010012PDF
12910.018.440081801905010012PDF
12910.028.000082801905010012PDF
12910.040.040084001905010012PDF
12910.060.060086001905010012PDF
12910.080.080088001905010012PDF
12910.100.0100810001905010012PDF
12910.150.0500815001905010012PDF
12910.200.0200820001905010012PDF
12910.250.0620825001905010012PDF
12910.300.0300830001905010012PDF
12910.500.5000850001905010012PDF

Technical data

Compatibility

  • Grindstones for chrome surfaces
  • Grinding stones for steel surfaces

Handling

Grinding stone diameter +/- 5mm
