Eco Line

Folacoat Flex

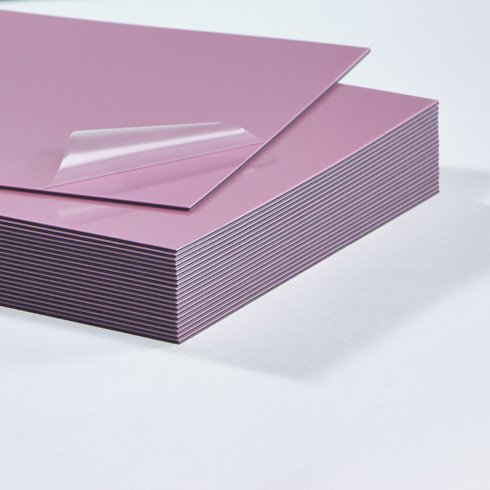

The Folacoat Flex is a compressible coating plate in the 1.15 and 1.35 mm thickness and can ensure best coating coverage of the sheet, even on critical substrates (recycled cardboard). The compound of the pink polymer and the compressible layer transfer the water-based coating in an optimal manner. The compressible layer improves the runnability of coating plate in the printing process and improves the coating transfer.
The single-layer polyester carrier provides the necessary dimension stability and allows the multiple use. This plate can be cut manually by hand or with a CAD cutting system.

Please click here  to find useful handling recommendation and interesting product introduction by video.

Cut sheets

Art. NumberNominal thickness (inch)Nominal thickness (mm)
12543.115.99900.0451.15 PDF
12543.135.99900.0531.35PDF

Rolls

Art. NumberWidth (mm)Length (m)Nominal thickness (inch)Nominal thickness (mm)
12543.115.19900128020.0451.15PDF
12543.135.19900128015.0531.35PDF

Technical data

Characteristic

  • Recommended for direct coating
  • Suitable for aqueous coating
  • Ideal for CAD cutting systems
  • Compressible foam
  • Polyester-basis/ -carrier

Specifications

Thickness of polymer layer0.55 mm (.0217'')
Thickness of foam 0.44 mm (.0173'')
Thickness of carrier 0.19 mm (.0075'')
Tolerance of thickness ± 0.05 mm (.002'')
Type of coating transfer direct coating
Plate hardness75 Shore A
Nominal thickness (inch).045
Nominal thickness (mm)1.15
Surface treatment
Hardness of polymer (DIN 53505)83 Shore A
Base MaterialPolyester

Compatibility

  • Suitable for aqueous coatings

Handling

NOMINAL THICKNESS 1.15 mm: Recommended cutting depth: about 0.70 mm (.0276”). Please pay attention to cut only in the pink polymer and the foam. Deeper cuts will reduce stability and must be avoided. If you can see white cutting lines on the backside of the coating plate the carrier was scored. If this happened please do not use this coating plate, because it may break in the press.

Downloads (PDF)
