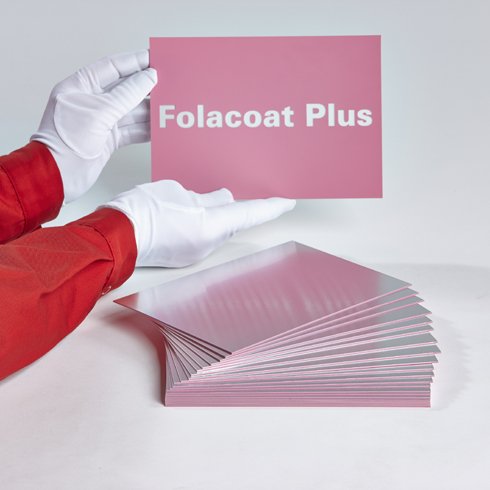

Folacoat Plus ALU

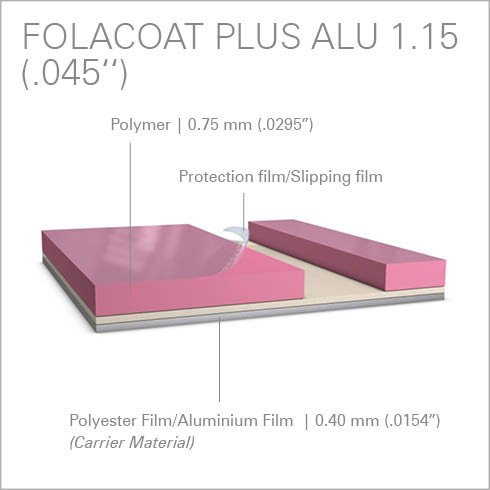

Strippable coating plate with aluminium base containing the following layers:

Surface: Pink polymer for aqueous- and UV-coating transfer (slipping -/ protection film on top)

Carrier: Polyester / Aluminium-laminate. The composite material of polyester and aluminium provides stability during the cutting and printing process. The anti-friction surface of the slipping film facilitates the movement of the knife of a CAD Cutting System on the polymer surface. Additionally cuts are clearly visible and it is easier to locate the stripping areas.

For useful hints and recommendations by video click here.

Cut sheets

Art. Number	Nominal thickness (inch)	Nominal thickness (mm)
12518.115.99900	.045	1.15

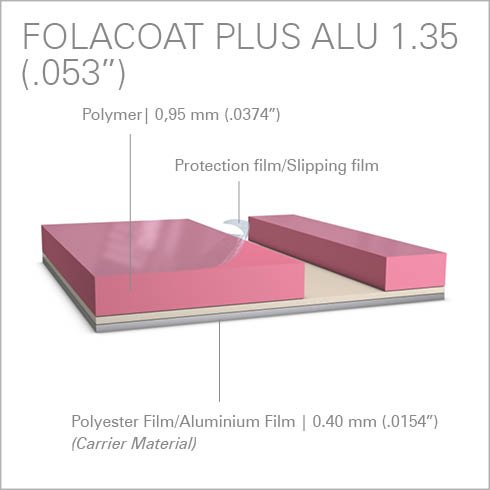

12518.135.99900	.053	1.35

Technical data

Characteristic

With edge bending
Aluminum-basis/ -carrier
Recommended for direct coating
Suitable for aqueous coating
Suitable for UV coating
Slipping film / protection film
manual cutting possible
Ideal for CAD cutting systems
Cutting protection (double layer)
Cut visualization

Specifications

Thickness of polymer layer	0.75 mm (.0295'')
Thickness of carrier material	0.39 mm (.0154'')
Tolerance of thickness	± 0.05 mm
Type of coating transfer	direct coating
Plate hardness	88 Shore A
Nominal thickness (inch)	.045
Nominal thickness (mm)	1.15
Surface treatment	Slipping film/Protection film
Hardness of polymer (DIN 53505)	83 Shore A
Base Material	Aluminium/Polyester

Compatibility

Suitable for aqueous and UV coatings

Handling

NOMINAL THICKNESS 1.15 mm: Recommended cutting depth about 0.85 mm (.0335”). If you like to remove the slipping film before cutting, reduce depth by 0.05 mm (.002”). The polyester film in the middle helps to avoid deformations of the carrier-film below. Please make sure that the cut goes correctly through the polymer and slightly into the polyester film in the middle. This now means that an advisable cutting depth was reached. As a result a correct stripping performance will be obtained without partial lifting of the remaining polymer areas.
