Premium Line

Folacoat Ultra A

With Folacoat Ultra-A, the next generation of the 1.95 mm thick coating plate is now ready to be launched and will replace the Folacoat Ultra-T.

The brand new Folacoat Ultra-A impresses with an even broader range of applications. The soft top polymer achieves a sharp-edged paint transfer. Especially with critical substrates (e.g. recycled cardboard), our new coating plate delivers
optimal coating results at maximum printing speeds.

The tensile strength is achieved by a polyester film that is positioned in the
center of the coating plate. This guarantees fiber-free recesses. There is no
need to re-tension the coating plate and machine downtimes are reduced to a
minimum.

In contrast to many rubber-based coating blankets, the compressible element is
attached under the polyester carrier. It is thus protected against penetration
by washing agents or coatings and can be used multiple times. Water-based and UV coatings can be processed perfectly. In the usual way, coating forms can be
produced quickly and hassle-free.

The Folacoat Ultra-A is available in thicknesses of 1.95 mm and 2.40 mm.

Please click here  to find useful handling recommendation and interesting product introduction by video.

Cut sheets

Art. NumberNominal thickness (inch)Nominal thickness (mm)
12526.195.99900.0771.95PDF
12526.240.99900.0942.40PDF

Rolls

Art. NumberWidth (mm)Length (m)Nominal thickness (inch)Nominal thickness (mm)
12526.195.310801080151.95.077PDF
12526.195.312801280151.95.077PDF
12526.240.310801080152.40.094PDF
12526.240.312801280152.40.094PDF

Technical data

Characteristic

  • Suitable for aqueous coating
  • Suitable for UV coating
  • manual cutting possible

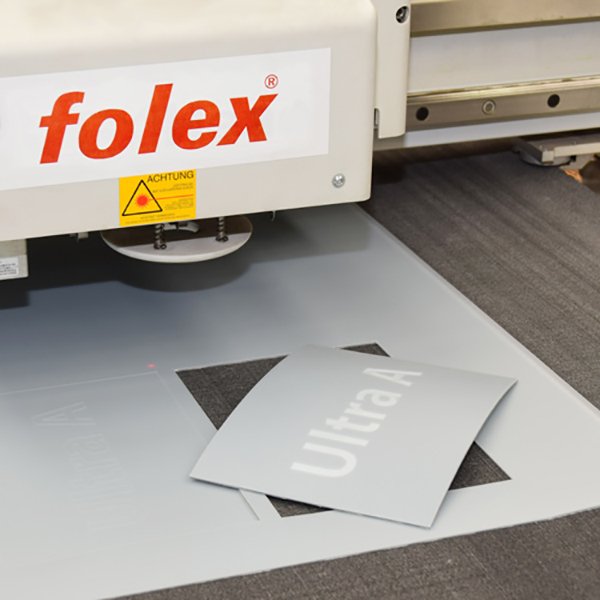

  • Ideal for CAD cutting systems
  • Compressible foam
  • Polyester-basis/ -carrier

Specifications

Thickness of polymer layer0.80 mm (.0315'')
Thickness of carrier 1.15 mm (.045'')
Tolerance of thickness ±0.05 mm (.002'')
Type of coating transfer direct coating
Plate hardness82 Shore A
Nominal thickness (inch).077
Nominal thickness (mm)1.95
Surface treatment
Hardness of polymer (DIN 53505)76 Shore A
Base MaterialPolyester/Foam-fabric-lamination

Handling

Recommended cutting depth: exactly 0.82 mm (.032''). If you like to remove the slipping film before cutting, reduce depth by 0.02 mm (.0008”). The pink polymer should be cut through, without cutting into the polyester carrier deeper than 20 µm (.0008”). Deeper cuts will reduce stability and must be avoided. If manual cuts are carried out, it should be ensured that an even ideal cutting depth is maintained to prevent unnecessary scoring of the polyester film. The foam/fabric lamination on the backside can be removed if it’s necessary for an easy fastening and closure of the clamping bars.

Downloads (PDF)
