Grinding Stones

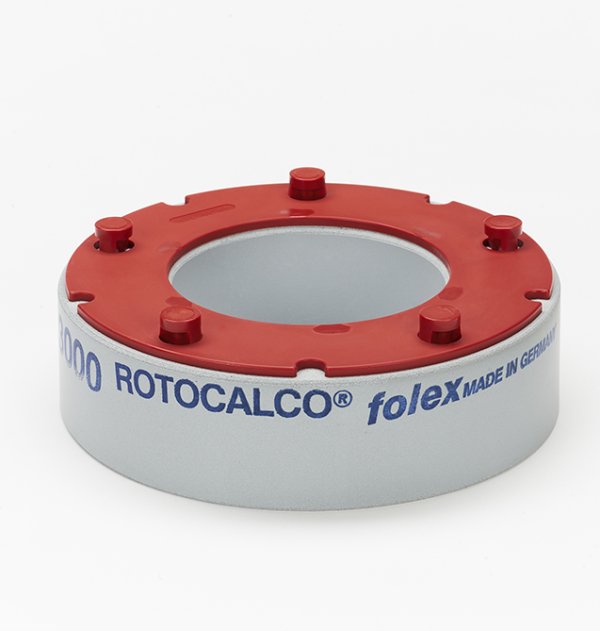

ROTOCALCO® Grinding Stone with Quick-Lock-Adapter disc

In the modern Grinding Industry, which is primarily characterized by the demand for economy and productivity, innovative connection solutions play an important role. Quick retrofitting and setting up the grinding machines for optimum grinding conditions must therefore be accorded special importance.
Common Quick-Lock systems offer a good opportunity to significantly reduce make-ready times. The adapter discs were finally bonded to the grinding stone with a special hybrid adhesive. The adhesive used here achieves optimum adhesion to the porous grinding stone surface and the adapter disc. The bond provides a good temperature and moisture resistance.
A trouble free use of our grinding stone with Quick-Lock adapter can be assured.
Due to the lack of pin anchors, the height of our Rotocalco Grinding stones can be optimally utilized.

Rotocalco Grinding stones with Quick-Lock adapter disc for processing copper cylinders are available with a 100 mm inner hole. On request, grinding stones with a 50 mm inner hole can also be equipped with the Quick-Lock adapter disc. We will gladly submit you our detailed offer.

After successful use, the Grinding stone can be easily removed from the bayonet carrier plate. Optionally we offer a special tool for detaching the grinding stones.

PRODUCT ADVANTAGES:

  • Quick installation of the Grinding stone
  • Weight savings through solid plastic
  • Corrosion-free
  • Optimum use of the Grinding stone height
  • Easy clamping and unclamping with special tool

Cut sheets

Art. NumberGrit sizeHeight approx. (mm)pcs per packageCentre Hole Diameter in mmOuter Hole Diameter in mm
12910.012.55007190505012012PDF
12910.018.44007190505018012PDF
12910.028.00007190505028012PDF
12910.040.04007190505040012PDF
12910.060.06007190505060012PDF
12910.080.08007190505080012PDF
12910.150.050071905050150012PDF
12910.200.020071905050200012PDF
12910.250.062071905050250012PDF
12910.300.030071905050300012PDF
12910.500.500071905050500012PDF
12910.012.550081905010012012PDF
12910.015.330081905010015012PDF
12910.018.440081905010018012PDF
12910.028.000081905010028012PDF
12910.040.040081905010040012PDF
12910.060.060081905010060012PDF
12910.080.080081905010080012PDF
12910.100.0100819050100100012PDF
12910.150.0500819050100150012PDF
12910.200.0200819050100200012PDF
12910.250.0620819050100250012PDF
12910.300.0300819050100300012PDF
12910.500.5000819050100500012PDF

Technical data

Compatibility

  • Grindstones for chrome surfaces
  • Grinding stones for steel surfaces

Handling

Grinding stone diameter +/- 5mm
