EL-NG

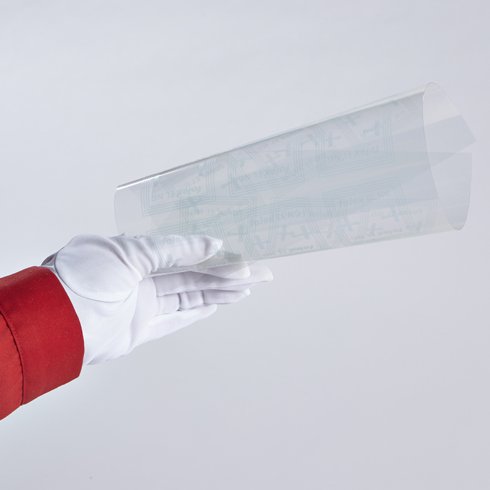

Polyester film with conductive coating on the front side. Both sides with ink receptive coating. Material is available with a thickness of 0.13 mm and 0.18 mm.

Available in sheets and rolls. Sheets available in standard packing unit or on demand. All sheets and rolls are equipped with self-adhesive protective film on the conductive side as standard.

Cut sheets

Art. NumberNominal thickness (mm)Packing quantity
4891x.125.xxxxx0.13100PDF
4891x.175.xxxxx0.18100PDF

Rolls

Art. NumberLength (m)Nominal thickness (mm)
4891x.125.xxxxx1000.13PDF
4891x.175.xxxxx1000.18PDF

Technical data

Characteristic

  • Ink receptive coating
  • Suitable for textured laquers

Properties

PropertyTest MethodValue
Optical
HazeASTM D1003-770,6 - 2,0%
Mechanical
EmbossingFolex methodpossible
Tensile strength at breakASTM D 882170 N/mm2
Chemical
Chemical stabilityFolex methodpartly resistant
Electrical
Dielectric strength1ASTM D149-81120 kV/mm (125 µm)
Surface resistivityASTM D257-83110 Ohm/sq.
Thermal
Shrinkage TD130°C 30 min Folex method< 0,7%
Shrinkage MD130°C 30 min Folex method< 0,7%
Maximum processing temperature120°C
Melting temperature1ASTM E794-85255°C
Surface
Roughness RaEN ISO 4287, ASME B46.10,1 - 0,4 µm
Scratch resistanceFolex methodpartly resistant
Surface tension Front sideDIN 53364, ASTM D257844 ± 2 mN/m
Surface tension Back sideDIN 53364, ASTM D257838 ± 2 mN/m

1 Data derived from base film Polyester manufacturer's literature

Specifications

Nominal thickness (mil)5.2
Nominal thickness (mm)0.13
Base MaterialPolyester
Packing quantity 100

Handling

  • Preliminary testing necessary by customer
